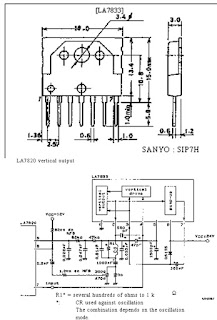

la7833 pin out

LA7833 Vertcal Amp Ic Aplied
La7830, LA7820

  1. GND
  2. Vertcal Outputpin
  3. Vertical Output Power Supply
  4. Input Pin
  5. Osilation Pin/Stoping pin
  6. Power Supply
  7. Pulse Amplyfier out
    ic LA7833 Vertcal Amp Ic Aplied La7830, LA7820 GND Vertcal Outputpin Vertical Output Power Supply Input Pin Osilation Pin/Stoping pin Power Supply Pulse Amplyfier out
    la7833 pin out
